Inline RBS Type Hints for a Rubygem Codebase

Back in 2021 I wrote about my experiments adding sorbet types to a rubygem codebase. I remain type-curious in 2025 (particularly now that I’m writing more Typescript than Ruby), enjoying the developer experience benefits of type checking and an IDE integrated Language Server.

Sorbet was historically built for application codebases, where a runtime dependency on sorbet was a decision a team could reasonably make. For a gem like pdf-reader though, a runtime dependency on sorbet is a no-go. I want the benefits of type checking for development and CI workflows, without imposing such a heavy native dependency on users.

The 2021 experiment worked, with caveats:

Working with the type annotations in separate files to the source has been… awkward

Given that experience, I was intruiged to see Shopify announce support for RBS-style type annotations in sorbet in early 2025, using inline comments that require no runtime depencency.

The announcment has this as an example:

#: (Array[String]) -> String
def greet(names)
  "Hello, #{names.join(", ")}!"
end

class User
  #: String?
  attr_reader :nickname

  #: (String, String?) -> void
  def initialize(name, nickname = nil)
    @name = name #: String
    @nickname = nickname #: String?
  end
end

Would this allow me to move the pdf-reader type annotations inline with the code, simplifying ongoing maintenance?

I gave it a crack, and the answer was yes*. For the specific use case of type annotating a ruby gem codebase, inline RBS type annotations are a significiantly better experience.

Starting from v2.15.0, pdf-reader:

• has type annotations defined inline using RBS comments
• no longer has an RBI file commited to the repository
• uses spoom to dynamically generates an RBI in CI for inclusion in gems published to rubygems.org, so downstream users have access to type annotations for sorbet to use. (command: spoom srb sigs export)
• continues to use sorbet for typechecking during CI for all builds

Is it weird to move from all-sorbet to having a foot in each of Ruby’s two competing type hinting ecosystems? For this specific use case, it has so far been all upside. The sorbet docs list a number of caveats to using RBS inline comments while continuing to use sorbet to typecheck, but pdf-reader’s needs are modest and none of the caveats have been a problem yet.

Bonus Upside

Additionally, there was a tangible improvement to the typing capabilities. Previously with RBI types stored in an external file sorbet struggled to support annotating class constants. That left constants like this with no type hints:

class Buffer
  TOKEN_WHITESPACE = [0x00, 0x09, 0x0A, 0x0C, 0x0D, 0x20]
  TOKEN_DELIMITER = [0x25, 0x3C, 0x3E, 0x28, 0x5B, 0x7B, 0x29, 0x5D, 0x7D]

With inline RBS comments, these are easy to annotate:

class Buffer
  TOKEN_WHITESPACE=[0x00, 0x09, 0x0A, 0x0C, 0x0D, 0x20] #: Array[Integer]
  TOKEN_DELIMITER=[0x25, 0x3C, 0x3E, 0x28, 0x5B, 0x7B, 0x29, 0x5D, 0x7D] #: Array[Integer]

Developer Experience

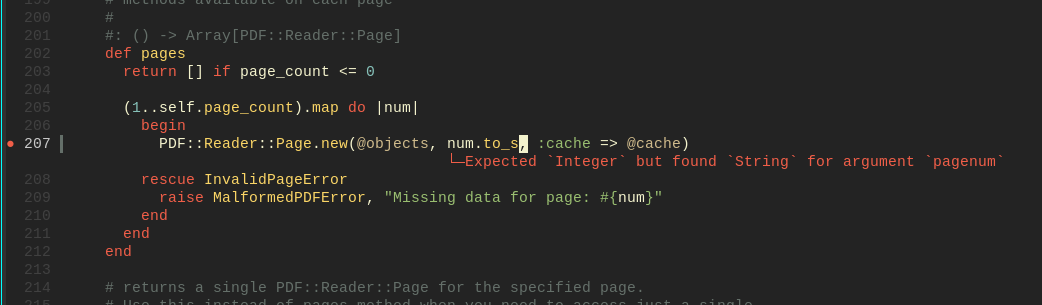

Here’s how helix shows a type error when I’m developing locally:

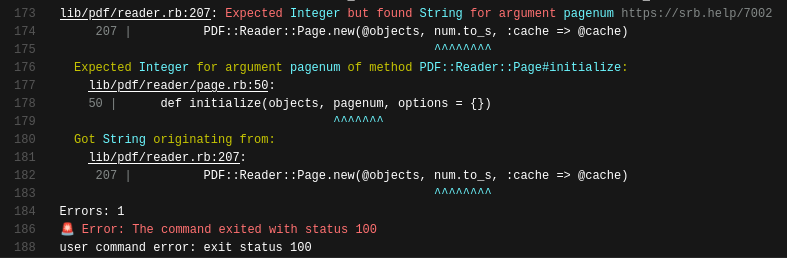

… and here’s how CI fails when a type error gets that far:
